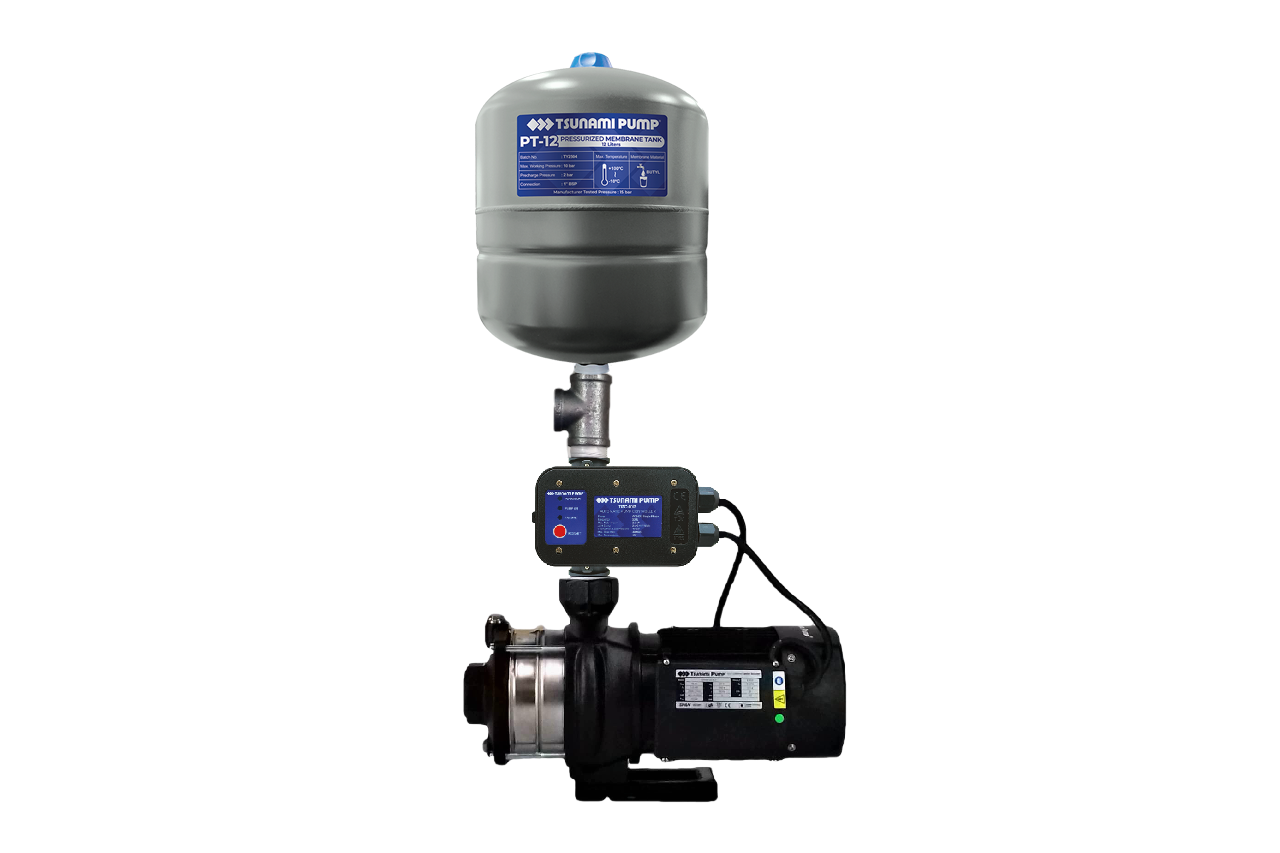

CMH8-25-K2(PT) – High Power Water Boosting For Hotel & Motel

Original price was: RM3,650.00.Current price is: RM2,200.00.

CMH8 Sereis is a High Power Water Boosting For Hotel & Motel. A robust pump designed to give higher performance and longer operating life. It able to supports up to 15-20 Shower Heads & Water Taps.

Technical Data
Power (P2)

1.50kW

Horsepower

2.0Hp

Voltage

240v

Frequency

50Hz

Max. Flow

10m³/h

Max. Head

47m

Motor Phase

Single-Phase

Protection Class

IP55

Liquid Temperature

20°C – 70°C

Weight /Carton (Kg)

Carton Dimension(LxWxH)

Weight (Unit)

20kg

Unit Dimension (L x W x H)

Warranty Period Residential / Commercial

1 Years / 1 Years

Application

Civil / Agricutural / Industrial Water Supply, Commercial / Laundry Pressure Boosting, Household Pressure Boosting

Pump Body

Cast Iron

Inlet Casing

Cast Iron

Outlet Casing

Cast Iron

Pump Shaft

Stainless Steel

Impeller

Stainless Steel

Mechanical Seal

Silica Carbon

Material
Power (P2)

1.50kW

Horsepower

2.0Hp

Voltage

240v

Frequency

50Hz

Max. Flow

10m³/h

Max. Head

47m

Motor Phase

Single-Phase

Protection Class

IP55

Liquid Temperature

20°C – 70°C

Weight /Carton (Kg)

Carton Dimension(LxWxH)

Weight (Unit)

20kg

Unit Dimension (L x W x H)

Warranty Period Residential / Commercial

1 Years / 1 Years

Application

Civil / Agricutural / Industrial Water Supply, Commercial / Laundry Pressure Boosting, Household Pressure Boosting

Pump Body

Cast Iron

Inlet Casing

Cast Iron

Outlet Casing

Cast Iron

Pump Shaft

Stainless Steel

Impeller

Stainless Steel

Mechanical Seal

Silica Carbon
