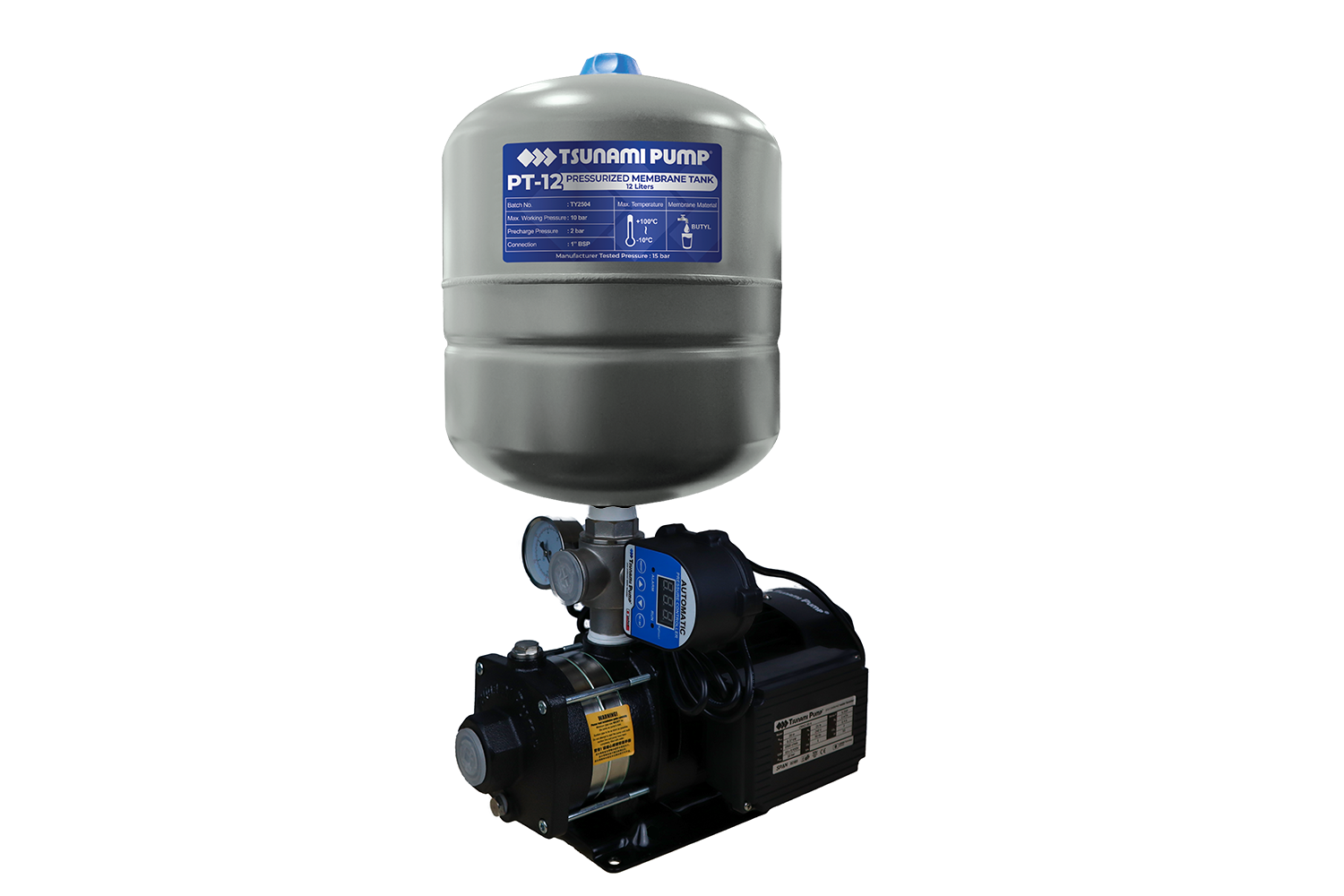

Tsunami Booster Pump CMH2-30-iPT

Original price was: RM2,300.00.Current price is: RM1,200.00.

Home Booster Pump with high strength, no deformation, long life and safe. Suitable for application like water supply and pressure boosting for the water on processing line.

Elevate Your Experience with  CMH2-30-iPT Water Pressure Pump Motor

This water pressure pump ensures consistent and reliable water flow throughout your house, even when multiple taps are in use. It features a segmental multistage stainless steel pump, cast iron inlet and outlet, and advanced welding techniques for high strength and durability. And the mechanical seal guarantees watertight performance during prolonged use.

With an aluminium frame ensuring low noise and vibration, insulation class F, and single-phase thermal protection, this pump prioritises safety, convenience, and longevity. Elevate your water solutions with Tsunami Pump Malaysia if you’re looking for a trusted water pump shop near you.

The Application of CMH2-30-iPT Water Pressure Pump Motor

This water pressure pump motor serves a spectrum of needs that combines efficiency with versatility. It’s a low-maintenance, energy-saving operation to pressure boosting in processing lines, water treatment, and supporting air-conditioning as well as industrial processing lines.

Ensuring a steady water supply for drinking and effortlessly handling weak water pressures, this pump is definitely the right solution. Plus, with its capability to contribute to fire-fighting systems, it’s a true all-rounder. Look no further — the most reliable water pump shop near you — Tsunami Pump has it all, bringing convenience and performance right to you. Enhance your water experience with Tsunami Booster Pump CMH2-30-iPT with the most credible water pump manufacturers in Malaysia.

Check out our other home series water pumps well such as our CMH2-30-K, CMF2-30-K and CMS2-30-iPC for the perfect combination of effective residential water management.

Technical Data
Power

370w

Horsepower

0.5Hp

Max. Head

28m

Rated Head

Max. Flow

3.5m³/h

Rated Flow

Max. Speed

2950rpm

Max. Liquid Temperature

50°C

Frequency

50Hz

Motor Phase

Single-Phase

Protection Class

IP55

Pipe Connection (Inlet)

1”

Pipe Connection (Outlet)

1”

Weight /Carton (Kg)

13kg

Carton Dimension(LxWxH)

38 x 34 x 38cm

Weight (Unit)

11kg

Unit Dimension (L x W x H)

35 x 19 x 31cm

Warranty Period Residential / Commercial

2 Years / 1 Years

Application

Household Pressure Boosting

Building Type

1-2 Storey

Dry-Running Protection

Yes

Anti Bursting

Yes

Digital Indicator

Yes

Adjustable Cut in/Cut off setting

Yes

Pressure Setting

Yes

Count Down Setting

No

Maintenance Free

Yes

Reduce Hammering

Yes

Restart System (Dry Run)

Yes

Old House/Pipings (>15yrs)

Yes

ABS Piping

Yes

Pump Body

Cast Iron

Inlet Casing

Cast Iron

Outlet Casing

Cast Iron

Pump Shaft

Stainless Steel

Impeller

Stainless Steel

Mechanical Seal

Silica Carbon

Features
Power

370w

Horsepower

0.5Hp

Max. Head

28m

Rated Head

Max. Flow

3.5m³/h

Rated Flow

Max. Speed

2950rpm

Max. Liquid Temperature

50°C

Frequency

50Hz

Motor Phase

Single-Phase

Protection Class

IP55

Pipe Connection (Inlet)

1”

Pipe Connection (Outlet)

1”

Weight /Carton (Kg)

13kg

Carton Dimension(LxWxH)

38 x 34 x 38cm

Weight (Unit)

11kg

Unit Dimension (L x W x H)

35 x 19 x 31cm

Warranty Period Residential / Commercial

2 Years / 1 Years

Application

Household Pressure Boosting

Building Type

1-2 Storey

Dry-Running Protection

Yes

Anti Bursting

Yes

Digital Indicator

Yes

Adjustable Cut in/Cut off setting

Yes

Pressure Setting

Yes

Count Down Setting

No

Maintenance Free

Yes

Reduce Hammering

Yes

Restart System (Dry Run)

Yes

Old House/Pipings (>15yrs)

Yes

ABS Piping

Yes

Pump Body

Cast Iron

Inlet Casing

Cast Iron

Outlet Casing

Cast Iron

Pump Shaft

Stainless Steel

Impeller

Stainless Steel

Mechanical Seal

Silica Carbon

Materials
Power

370w

Horsepower

0.5Hp

Max. Head

28m

Rated Head

Max. Flow

3.5m³/h

Rated Flow

Max. Speed

2950rpm

Max. Liquid Temperature

50°C

Frequency

50Hz

Motor Phase

Single-Phase

Protection Class

IP55

Pipe Connection (Inlet)

1”

Pipe Connection (Outlet)

1”

Weight /Carton (Kg)

13kg

Carton Dimension(LxWxH)

38 x 34 x 38cm

Weight (Unit)

11kg

Unit Dimension (L x W x H)

35 x 19 x 31cm

Warranty Period Residential / Commercial

2 Years / 1 Years

Application

Household Pressure Boosting

Building Type

1-2 Storey

Dry-Running Protection

Yes

Anti Bursting

Yes

Digital Indicator

Yes

Adjustable Cut in/Cut off setting

Yes

Pressure Setting

Yes

Count Down Setting

No

Maintenance Free

Yes

Reduce Hammering

Yes

Restart System (Dry Run)

Yes

Old House/Pipings (>15yrs)

Yes

ABS Piping

Yes

Pump Body

Cast Iron

Inlet Casing

Cast Iron

Outlet Casing

Cast Iron

Pump Shaft

Stainless Steel

Impeller

Stainless Steel

Mechanical Seal

Silica Carbon
